Guide rings rod
The function of guide rings is to guide the piston rod of a hydraulic cylinder and to absorb lateral forces properly. At the same time, it prevents any metal-to-metal contact, which will damage the surfaces.
Read more

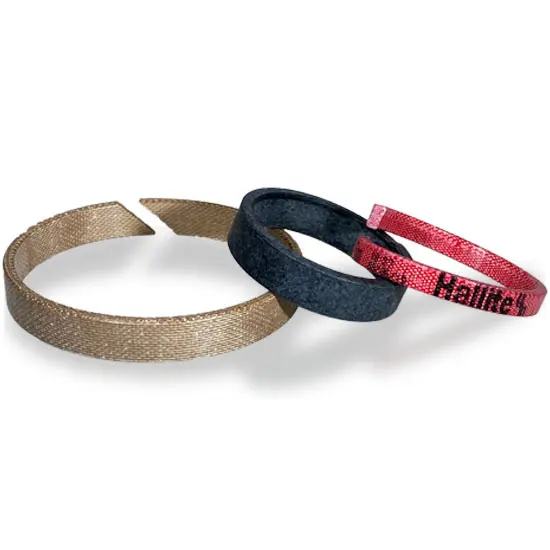

Guide rings rod
The task of guide rings is to guide the piston rod of a hydraulic cylinder and to absorb the lateral forces correctly. At the same time, they prevent metal from coming into contact with metal, which would damage the surfaces. This can ultimately lead to damage to the seals, leaks and damage to components of the hydraulic system. Seal Supply offers seals in a variety of materials, including laminated fabric, PTFE (with various fillings), POM and Hallite 506 (fabric-reinforced polyester resin). The properties of the various materials are briefly described below.
Overview of specifications
Specifications | |||||||
Seal Supply | Function | Material | Color | Material code | Temperature range | Pressure (max.) | Speed(max.) |
GR-R10 | rod | Cotton fabric, Phenol resin | brown | HG-1 | -40 up to +120°C | 290 N/mm2 | 1 m/s |
GR-R10 | rod | Phenolic, PTFE | brown | HG-2 | -40 up to +130°C | 330 N/mm2 | 1 m/s |
GR-R10 | rod | Polyester fabric, Epoxyhars | white | HG-2B | -50 up to +200°C | 310 N/mm2 | 1 m/s |
GR-R10 | rod | Polyester resin, Fabric + Graphite (cut from band) | grey | HG-5 | -50 up to +200°C | 340 N/mm2 | 1 m/s |
GR-R10 | rod | Halite 506, Hard fabric reinforced polyester resin | red | HG-506 | -40 up to +120°C | 450 N/mm2 | 5 m/s |
GR-R10 | rod | POM glass | black | POM | -40 up to +110°C | 35 N/mm2 | 0,8 m/s |
GR-R10 | rod | PTFE bronze | green | PTFE | -60 up to +80°C (100°C) | 15 N/mm2 | 15 m/s |
Crossreference list
Crossreference | |||||||||||
Seal Supply | Function | Dichtomatik | Sealtech | Kimman | Vota | FPE Seals | PU1TEC | Freudenberg | Trelleborg | Parker | Eriks |
GR-R10 / HG-1 | rod | I/GTP | |||||||||
GR-R10 / HG-2 | rod | FRS 05 | I/GTP1 | C/P | IDWR 506 | MWRB | C 380 | FR | SBK | ||
GR-R10 / POM | rod | FRK 03 | I/DWR | I/DWR | IDRW POM | MWR | DF 101 | EPGI | |||
GR-R10 / PTFE | rod | FRS 01 | I/GT | 050 | TB | MWRT | DF 101 | SF | |||
