Speedi Sleeves

Speedi Sleeves are innovative and highly effective solutions for repairing damaged shafts and sealing surfaces in machinery and equipment. These thin, metal sleeves are designed to be quickly and easily slipped over damaged shafts or sealing surfaces.

Read more

Speedi Sleeves

Speedi Sleeves are used to repair worn running surfaces on the shaft. This is a quick and cost-effective alternative to repairing or replacing the worn shaft. An oil seal only seals properly if the running surface on the shaft is good. Thus, this surface should not be too smooth or too rough and should not be damaged and completely free of corrosion. A Speedi-Sleeve is a high-quality thin stainless steel bushing, which is pushed over the damaged part of the shaft.

Applications

Speedi Sleeves are placed on axles to repair the run-in or damaged tread. Repairing or replacing the axle is time-consuming and generally a costly exercise. In many cases, the Speedi Sleeve is a quick and cost-efficient alternative. The Speedi Sleeve can also be used as original equipment to avoid a costly machining operation on the axle surface.

Features and benefits:

  • Quick and easy installation

  • Cost-efficient replacement of run-in axle running surfaces

  • Minimum repair time required

  • Thin wall thickness eliminates the need for seal modification

  • Precision on the ground surface ensures long service life

  • Many options for standard dimensions

Surface roughness:

  • Ra = 0.2 - 0.8 μm

  • Rz = 1 - 5 μm

  • Rmax ≤ 6.3 μm

Surface hardness:

  • HV 220 (95 HRB)

  • Wear-resistant machining

Wall thickness:

  • Thin wall design

Installation

The Speedi Sleeve can be installed quickly and easily with the supplied mounting material. The mountingflens easily removable.

Instructions are included in the packaging:

  • Clean the run-in tread on the axle. Remove bumps with light sandpaper

  • Measure the diameter of tread at an unaffected location. Select the usable Speedi Sleeve based on this measurement

  • Place the supplied set against the edge of the sleeve

  • If the mounting sleeve is too small, a tube can also be used

  • Push gently in the middle of the mounting sleeve until the damaged area is reached

  • The sleeve should only be removed if it obstructs the application. If it must be removed, a notch should be made carefully before mounting to avoid damage

  • Mount the seal

The online store for all your seals

Speedi Sleeves can be ordered from Seal Supply easily and in several ways. You can place your order with us online, by phone or by e-mail. Creating your own webshop account gives you the necessary advantages. You will always have insight into stock and delivery times.

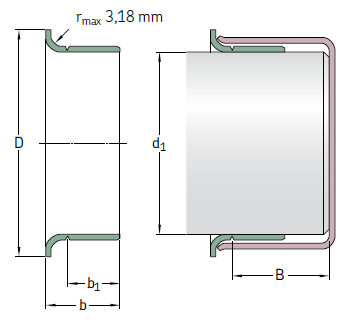

Speedi Sleeve

min.

max.

d1

D

b1

b

B

SKF

Seal Supply

±1,6

±0,8

±0,8

partnumber

partnumber

11.99

12.07

12.0

15.5

6.0

8.4

47.63

99049

326354

12.65

12.75

12.7

15.5

6.3

8.7

50.8

99050

473654

13.89

14

14.0

19.1

6.3

9.9

46.51

99055

473655

14.22

14.38

14.3

19.1

6.3

9.9

46.51

99056

473656

14.96

15.06

15.0

19.1

5.0

9.0

47.29

99059

473657

15.82

15.93

15.9

19.1

8.0

10.3

50.8

99062

473658

15.9

16

16.0

18.2

8.0

11.1

50.8

99058

473659

16.94

17.04

17.0

22.2

8.0

11.0

50.8

99068

468582

17.32

17.42

17.4

22.7

8.0

11.1

50.8

99060

473660

17.88

18.01

17.9

24.4

8.0

11.1

46

99082

473661

19

19.1

19.1

24.0

8.0

11.1

50.8

99076

473662

19.28

19.33

19.3

23.8

8.0

11.1

50.8

99081

473663

19.81

19.91

19.8

23.8

8.0

11.1

50.8

99080

473664

19.94

20.04

20.0

23.6

8.0

11.0

50.8

99078

325287

20.62

20.7

20.7

30.2

9.5

14.3

76.2

99083

473665

21.77

21.87

21.8

29.3

6.3

9.5

50.8

99086

473666

21.87

22

22.0

30.2

6.6

9.1

47.14

99084

466068

21.87

22

22.0

30.2

8.0

12.0

46.02

99085

325839

22.17

22.28

22.2

27.8

8.0

11.1

50.8

99087

473667

23.06

23.16

23.1

30.9

8.0

11.1

46.91

99091

473668

23.88

24

24.0

28.7

8.0

11.1

50.8

99092

373610

24.54

24.64

24.6

28.7

8.0

11.1

50.8

99094

473669

24.54

24.64

24.6

28.7

15.9

18.3

50.8

99096

473670

24.94

25.04

25.0

33.0

8.0

11.0

50.8

99098

319085

25.88

26.01

26.0

33.4

8.0

12.0

46.05

99103

473671

26.92

27.03

27.0

33.5

8.0

11.1

46.81

99106

473672

27.61

27.71

27.7

35.7

8.0

11.1

15.88

99108

473673

27.94

28.04

28.0

34.9

9.5

12.7

46.81

99111

325840

28.52

28.63

28.6

38.1

8.0

11.1

17.48

99112

473674

28.52

28.63

28.6

38.1

9.5

12.7

17.48

99116

473675

29.31

29.41

29.4

34.3

9.5

12.7

17.48

99120

473676

29.79

29.92

29.9

35.6

8.0

11.1

17.48

99122

473677

29.95

30.07

30.0

35.6

8.0

11.0

17.48

99114

319078

30.1

30.23

30.2

35.6

8.0

11.1

17.48

99118

473678

30.89

31.04

31.0

39.7

8.0

11.0

15.88

99123

473679

31.42

31.57

31.5

39.1

8.0

11.1

17.48

99141

473680

31.67

31.83

31.8

38.1

8.0

11.1

17.48

99125

473681

31.93

32.08

32.0

38.1

8.0

11.1

17.48

99128

423742

32.94

33.05

33.0

40.5

15.0

18.0

25.4

99121

473682

33.27

33.43

33.4

40.5

12.7

15.9

20.65

99131

473684

33.22

33.38

33.4

40.6

6.3

9.5

20.65

99129

473683

33.86

34.01

34.0

41.3

12.7

15.9

20.65

99134

473685

34.82

34.98

34.9

41.6

8.0

11.1

20.65

99133

473686

34.82

34.98

34.9

41.6

12.7

15.9

20.65

99138

469785

34.93

35.08

34.9

41.6

13.0

16.0

20.65

99139

319080

35.84

35.99

36.0

45.2

13.0

17.0

24.99

99146

325841

36.45

36.6

36.5

45.2

9.5

12.7

25.81

99144

473688

36.37

36.53

36.5

45.2

14.3

17.5

25.81

99143

473687

37.85

38

38.0

45.2

13.0

17.0

24.99

99147

469794

38.02

38.18

38.1

45.2

9.5

12.7

25.81

99150

326039

38.02

38.18

38.1

45.2

14.3

17.5

25.81

99149

473689

38.61

38.76

38.7

47.2

11.1

14.3

25.81

99152

473690

39.34

39.5

39.4

47.2

11.1

14.3

25.81

99155

466151

39.6

39.75

39.7

47.2

14.3

17.5

25.81

99156

327193

39.78

39.93

39.9

47.2

15.9

19.1

25.81

99159

473691

39.85

40.01

40.0

46.9

9.9

12.9

25.4

99153

319993

39.93

40.08

40.1

47.0

13.0

16.0

25.98

99157

325850

40.69

40.84

40.8

49.2

12.7

16.3

25.4

99160

473692

40.84

41

41.0

49.2

12.7

15.9

25.81

99163

473693

41.2

41.35

41.3

47.6

8.0

11.1

25.81

99161

473694

41.2

41.35

41.3

47.6

14.3

17.5

20.65

99162

473695

41.83

42.01

41.9

53.0

11.3

14.5

21.49

99166

473696

41.83

42.01

41.9

53.0

14.3

17.5

21.01

99169

325851

41.99

42.14

42.1

53.0

14.0

17.5

21.01

99165

473697

42.8

42.95

42.9

48.4

8.0

11.1

22.23

99167

473698

42.77

42.93

42.9

48.4

14.3

17.5

22.23

99168

473699

42.85

43

43.0

48.4

12.7

15.9

21.44

99182

473700

43.56

43.71

43.7

51.6

14.3

17.5

20.65

99171

473701

44.09

44.25

44.2

52.4

9.5

12.7

20.65

99170

473702

44.37

44.53

44.5

52.2

9.5

12.7

20.65

99172

473703

44.37

44.53

44.5

52.4

13.5

15.9

22.3

99180

473706

44.37

44.53

44.5

52.4

14.3

17.5

20.65

99174

473704

44.37

44.53

44.5

52.4

19.1

22.2

20.65

99175

473705

44.73

44.88

44.9

52.4

14.3

17.5

20.65

99176

473707

44.93

45.09

45.0

53.0

14.0

17.0

20.62

99177

319082

45.16

45.31

45.2

54.0

16.9

20.3

26.97

99179

473708

45.95

46.1

46.1

53.1

14.3

17.5

25.4

99181

473709

47.17

47.32

47.2

54.8

14.3

17.5

25.4

99185

473710

47.4

47.55

47.5

55.6

22.6

26.0

25.4

99186

473711

47.55

47.7

47.6

56.0

4.5

7.5

18.9

99190

473715

47.55

47.7

47.6

56.0

7.5

10.5

18.9

99188

473714

47.55

47.7

47.6

56.0

9.5

13.1

26.67

99184

473712

47.55

47.7

47.6

56.0

14.3

17.5

25.4

99187

473713

47.93

48.08

48.0

56.0

14.0

17.0

24.99

99189

473716

48.49

48.64

48.6

56.4

9.5

12.7

25.4

99192

473717

49.12

49.28

49.2

56.4

14.3

17.5

25.4

99193

473718

49.12

49.28

50.0

57.0

14.0

17.0

24.99

99196

319081

50.22

50.37

50.3

58.8

14.3

17.9

26.67

99198

473719

50.72

50.88

50.8

61.1

14.3

17.5

25.4

99199

473720

50.72

50.88

50.8

61.1

22.2

25.4

25.4

99200

473721

52.25

52.4

52.4

62.7

19.8

23.8

34.93

99205

473723

53.92

54.05

54.0

61.5

12.7

19.1

32.54

99210

473724

53.95

54.1

54.0

61.5

19.8

23.8

34.93

99212

473725

54.91

55.07

55.0

62.0

20.0

23.0

31.75

99215

319084

55.52

55.68

55.6

63.5

19.8

23.8

33.35

99218

473726

55.52

55.68

56.0

64.3

19.8

23.8

80.01

99224

473727

55.83

56.01

56.0

64.3

12.7

15.9

33.35

99220

473728

56.57

56.72

56.6

64.3

12.7

15.9

33.35

99229

473729

56.57

56.72

56.6

64.3

19.8

23.0

31.75

99230

473730

56.82

56.97

56.9

65.1

19.4

22.9

31.75

99226

473731

57.12

57.28

57.2

64.3

8.0

11.1

33.35

99227

469793

57.12

57.28

57.2

64.3

19.8

23.8

33.35

99225

473732

57.91

58.06

58.0

66.0

19.8

23.8

34.93

99219

473733

58.65

58.8

58.8

68.3

19.8

23.8

34.93

99231

473734

59.11

59.26

59.1

69.8

19.1

22.2

38.1

99233

473735

59.92

60.07

60.0

70.7

9.4

11.4

37.36

99241

326789

59.92

60.07

60.0

70.7

20.0

23.0

34.93

99235

319083

60.3

60.45

60.3

69.8

13.4

17.4

34.93

99240

473738

60.25

60.4

60.3

69.8

15.1

19.1

34.93

99238

473737

60.25

60.4

60.3

69.8

19.8

23.8

34.93

99237

473736

61.82

62

61.9

71.8

19.8

23.8

35.38

99243

473740

61.85

62

61.9

71.8

12.7

15.9

36.2

99242

473739

61.9

62.05

62.0

71.8

12.7

15.9

36.2

99244

330641

63.22

63.37

63.3

73.0

19.8

23.8

35.38

99249

473741

63.42

63.58

63.5

71.6

14.1

16.5

22.61

99253

473744

63.42

63.58

63.5

71.6

19.8

23.8

34.93

99250

473743

63.5

63.65

63.5

71.8

12.7

16.7

35.38

99248

473742

63.75

63.91

63.9

71.8

19.8

23.0

36.53

99251

473745

64.92

65.07

65.0

72.4

20.0

23.0

34.93

99254

325170

65.02

65.18

65.1

73.4

19.8

23.8

34.93

99256

473746

65.91

66.07

66.0

76.0

19.8

23.8

31.75

99259

473747

66.5

66.65

66.6

77.4

19.8

23.8

34.93

99261

473748

66.6

66.75

66.7

77.4

12.7

15.9

34.93

99260

473749

66.57

66.73

66.7

77.4

19.8

23.0

34.93

99264

473751

66.68

66.83

66.7

77.4

19.8

23.8

34.93

99262

473750

67.82

68

68.0

79.4

19.1

22.2

42.88

99266

473752

69.27

69.42

69.3

79.4

19.8

23.0

33.35

99268

473753

69.6

69.75

69.7

77.8

19.8

23.8

31.75

99273

473754

69.77

69.93

69.9

78.1

36.5

41.3

41.28

99267

473755

69.85

70

69.9

79.4

10.3

14.3

31.75

99272

325852

69.72

69.88

69.9

79.4

19.8

23.8

31.75

99275

473756

69.72

69.88

69.9

79.4

28.6

31.8

33.32

99269

424226

69.93

70.08

70.0

79.4

20.0

24.0

31.75

99276

325842

71.35

71.5

71.5

81.0

15.1

17.5

31.75

99281

473757

71.83

72.01

72.0

81.9

19.1

22.2

34.11

99284

424022

72.09

72.24

72.1

81.9

12.7

16.7

31.75

99282

473758

72.8

72.95

72.9

81.0

19.8

23.8

31.75

99286

473759

72.97

73.13

73.0

81.8

19.8

23.8

31.75

99287

473760

74.6

74.75

74.6

84.9

12.7

16.3

33.81

99290

473761

74.6

74.75

74.6

84.9

19.8

23.8

33.35

99293

473762

74.93

75.08

75.0

83.1

15.1

17.5

27.51

99289

424277

74.93

75.08

75.0

84.0

22.0

26.0

33.35

99294

325843

75.49

75.59

75.5

82.2

20.6

25.4

31.75

99292

473763

75.49

75.59

76.0

85.1

20.6

25.4

32.54

99299

473766

75.95

76.1

76.0

85.3

12.3

15.9

33.81

99291

473764

75.95

76.1

76.0

85.3

14.3

17.5

34.93

99298

473765

76.2

76.35

76.2

82.2

20.6

25.4

32.54

99300

473768

76.12

76.28

76.2

82.3

20.6

23.8

34.93

99296

473767

76.4

76.56

76.5

85.2

12.7

15.9

50.8

99301

473770

77.83

78

78.0

88.0

19.1

22.2

52.22

99306

473771

79.25

79.4

79.4

89.7

17.5

20.6

50.8

99311

473773

79.25

79.4

79.4

89.7

20.6

25.4

50.8

99312

473774

79.81

80.01

79.9

89.9

19.1

22.5

34.93

99313

473775

79.91

80.09

80.0

90.0

11.0

15.0

34.93

99317

320294

79.91

80.09

80.0

90.0

21.0

24.0

34.93

99315

320489

81.92

82.07

82.0

91.1

16.8

21.5

44.45

99328

473776

82.55

82.7

82.6

90.8

15.1

18.3

34.93

99324

473778

82.55

82.7

82.6

91.1

17.5

22.2

31.75

99326

473780

82.55

82.7

82.6

91.1

20.6

25.4

34.93

99325

473779

82.47

82.63

82.6

91.3

20.6

25.4

34.93

99322

473777

84

84.15

84.1

93.7

20.6

25.4

34.93

99331

473781

84.76

85.01

84.9

94.0

17.0

21.0

35

99332

473782

84.76

85.01

84.9

94.0

21.0

25.0

35

99333

325853

84.79

85.01

85.0

90.9

10.1

12.7

36.35

99334

473783

85.67

85.83

85.7

93.7

9.5

12.7

35.81

99338

473785

85.67

85.83

85.7

93.8

20.6

25.4

34.93

99337

473784

87.25

87.4

87.3

97.6

19.8

23.0

35.71

99339

473786

88.32

88.47

88.4

97.4

19.8

23.0

35.71

99340

473787

88.9

89.05

88.9

97.2

8.0

12.7

34.21

99347

473789

88.82

88.98

88.9

97.6

15.9

20.6

34.21

99346

473788

88.82

88.98

88.9

97.6

20.6

25.4

34.21

99350

473790

88.93

89.08

89.0

97.6

15.9

20.6

34.24

99349

473791

89.92

90.07

90.0

101.6

11.1

13.7

46.05

99352

473792

89.92

90.07

90.0

101.6

13.4

16.9

44.45

99353

473793

89.92

90.07

90.0

101.6

18.0

23.0

46.05

99351

327553

89.92

90.07

90.0

101.6

23.0

28.0

44.45

99354

319079

90.42

90.58

90.5

99.1

20.5

25.4

44.45

99356

473794

90.42

90.58

92.1

102.4

20.6

25.4

44.45

99362

473796

91,90

92,05

91,97

102,39

20,65

25,4

44,45

99360

473795

92.02

92.18

92.1

102.2

12.7

15.9

44.45

99363

473797

93.6

93.75

93.7

102.2

20.6

23.8

45.72

99365

473798

93.57

93.73

93.7

102.4

8.0

11.1

22.23

99368

473799

93.57

93.73

94.7

102.2

19.8

23.0

45.72

99366

473801

94.67

94.82

94.7

102.4

11.9

15.1

45.72

99359

473800

94.92

95.07

95.0

102.2

21.0

24.0

45.72

99369

325844

95

95.15

95.0

102.4

8.7

12.7

45.72

99374

473802

95

95.15

95.0

102.5

11.9

15.1

45.72

99364

469831

95

95.15

95.3

102.1

17.5

22.2

45.72

99372

473805

95.25

95.4

95.3

102.2

8.7

12.7

45.72

99367

473804

95.15

95.3

95.3

102.2

14.3

17.5

45.72

99376

473803

98.25

98.4

98.3

106.3

20.7

25.4

47.63

99386

473806

98.37

98.53

98.4

107.2

20.6

25.4

47.63

99387

473807

99.95

100.1

100.0

109.5

20.6

25.4

52.07

99393

325845

101.55

101.75

101.6

111.1

12.7

15.9

52.48

99401

473810

101.55

101.75

101.6

111.1

15.2

18.4

52.07

99395

473808

101.55

101.75

101.6

111.1

16.5

19.7

34.93

99400

473809

101.55

101.75

101.6

111.1

20.6

25.4

52.07

99399

327383

103.89

104.09

104.0

112.7

20.0

24.0

35.99

99409

473811

104.7

104.9

104.8

113.5

20.6

25.4

34.93

99412

473812

104.9

105.11

105.0

113.5

20.0

23.2

35

99413

325846

106.25

106.45

106.4

114.3

20.6

25.4

34.93

99418

473813

107.34

107.54

107.5

117.1

19.8

23.0

36.53

99423

473814

107.9

108.1

108.0

117.1

20.6

25.4

36.53

99424

473815

109.91

110.11

109.9

125.0

12.9

16.5

31.75

99435

468562

109.78

110.01

110.0

125.0

11.4

15.0

32.94

99434

473816

111

111.2

111.1

120.7

20.6

25.4

41.91

99437

473817

111.79

111.99

111.9

120.7

19.1

22.5

33.02

99438

473818

112.62

112.83

112.7

122.2

25.4

29.0

33.35

99439

473819

114.2

114.4

114.3

124.5

20.6

25.4

31.75

99450

473820

114.88

115.09

115.0

127.0

20.6

23.8

31.75

99452

325847

117.37

117.58

117.5

127.0

11.1

15.9

34.93

99465

473822

117.37

117.58

117.5

128.6

25.4

31.8

34.93

99463

473821

119

119.2

119.1

128.6

20.6

25.4

34.93

99468

473823

119.89

120.09

120.0

129.8

8.0

11.0

33.6

99471

473824

119.89

120.09

120.0

129.8

20.0

25.0

32

99473

327396

120.55

120.75

120.7

127.0

12.7

19.1

38.1

99475

408162

121.89

122.1

122.0

131.5

20.0

24.0

32

99472

473825

122.91

123.11

123.0

132.8

20.0

25.0

31.6

99484

473826

123.72

123.93

123.8

133.3

15.9

19.1

36.53

99487

473827

124.89

125.1

125.0

137.2

10.0

14.0

36.53

99490

473828

124.89

125.1

125.0

137.2

26.0

32.0

36.53

99492

473829

124.89

125.1

127.0

136.9

20.6

25.4

36.53

99499

473831

126.95

127.15

127.0

137.2

13.7

17.3

36.53

99501

473832

126.95

127.15

127.0

137.2

17.5

22.2

36.53

99498

473830

129.79

130

129.9

139.5

19.1

23.8

30

99494

473833

129.97

130.18

130.2

139.5

22.0

25.3

32.51

99491

473834

130.05

130.25

130.2

139.7

20.6

25.4

31.75

99513

473835

133.25

133.45

133.4

141.2

20.6

25.4

31.75

99525

473836

134.8

135

135.0

145.7

20.5

25.4

31.75

99533

473837

136.42

136.63

136.5

149.2

20.6

25.4

31.75

99537

473838

138.02

138.23

138.1

146.1

38.1

49.9

47.63

99548

473839

138.99

139.19

139.1

149.9

14.3

19.1

31.34

99547

473840

139.65

139.85

139.7

150.8

13.2

17.9

31.75

99550

473842

139.65

139.85

139.7

150.8

20.6

25.4

31.75

99549

473841

139.9

140.11

140.0

151.0

20.5

25.4

31.75

99552

473843

142.77

142.98

142.9

157.2

22.2

25.4

46.02

99560

473844

144.75

145.01

145.0

154.9

19.1

22.2

46.02

99571

473845

145.44

145.64

145.6

154.9

14.3

19.1

49.23

99562

473846

145.95

146.15

146.1

157.0

20.6

25.4

44.45

99575

473847

149.12

149.33

149.2

157.2

25.4

31.8

33.35

99587

473848

149.76

150.01

150.0

159.0

26.0

30.0

32.51

99595

325848

150.72

150.93

150.8

161.9

25.4

28.6

47.63

99596

473849

152.27

152.48

152.4

161.5

12.7

19.1

44.45

99601

473851

152.27

152.48

152.4

161.9

25.4

31.8

44.45

99599

473850

153.87

154.13

154.0

161.9

26.0

30.0

32.99

99605

473852

154.74

154.99

154.9

167.0

26.0

30.0

32.99

99606

473853

157.43

157.68

157.6

168.3

20.6

27.0

44.45

99620

473854

158.62

158.88

158.8

168.3

26.2

31.8

44.45

99625

473855

159.74

159.99

160.0

171.4

25.4

31.8

34.93

99630

473856

164.97

165.23

165.1

177.8

25.4

31.8

34.93

99650

473857

169.75

170

169.9

182.6

31.8

38.0

44.45

99640

319638

171.32

171.58

171.5

181.0

20.6

27.0

44.45

99675

473858

174.75

175.01

175.0

187.0

28.0

32.0

35

99687

473859

177.67

177.93

177.8

189.9

25.4

31.8

42.88

99700

473860

179.76

180.01

180.0

190.5

33.0

38.0

44.5

99721

325854

184

184.25

184.2

197.1

31.8

38.1

55.25

99725

473861

184.73

184.99

184.9

197.1

32.0

38.0

54.99

99726

473862

189.08

189.33

189.3

199.6

20.6

25.4

31.75

99745

473863

190.37

190.63

190.5

200.0

20.6

25.4

31.75

99750

473864

196.72

196.98

196.9

210.1

25.4

33.4

47.63

99775

473865

199.87

200.13

200.0

212.7

34.5

38.1

44.45

99787

441178

201.5

201.75

201.6

212.7

25.4

31.8

44.45

99799

473866

203.07

203.33

203.2

212.7

25.4

31.8

44.45

99800

473867

Some Information

This is the information of something you may know
