Cellasto seals

Cellasto seals SK PU MH24‑45 DIN ISO 3302‑1 M4 Type: CD 8

Dimensions: 10.5 x 14 x 4
Part number: 6560964
Delivery time: ± 3 weeks
More Details
Cellasto seals SK PU MH24‑45 DIN ISO 3302‑1 M4 Type: CD 100

Dimensions: 110 x 145 x 16.5
Part number: 6560980
Delivery time: ± 3 weeks
More Details
Cellasto seals SK PU MH24‑45 DIN ISO 3302‑1 M4 Type: CD 110

Dimensions: 122 x 155 x 16.5
Part number: 6560981
Delivery time: ± 3 weeks
More Details
Cellasto seals SK PU MH24‑45 DIN ISO 3302‑1 M4 Type: CD 10

Dimensions: 13.5 x 17 x 4
Part number: 6560965
Delivery time: ± 3 weeks
More Details
Cellasto seals SK PU MH24‑45 DIN ISO 3302‑1 M4 Type: CD 120

Dimensions: 130 x 173 x 15
Part number: 6560982
Delivery time: ± 3 weeks
More Details
Cellasto seals SK PU MH24‑45 DIN ISO 3302‑1 M4 Type: CD 12

Dimensions: 15 x 20 x 4
Part number: 6560966
Delivery time: ± 3 weeks
More Details

Cellasto Seals

The Cellasto seal is intended as an additional seal for rod ends. The Cellasto seal is intended to protect your radial bearings against the ingress of dirt and dust. This way you extend the life of your bearings. The sealing ring is extremely resistant to fats and oil. When the seal is immersed in oil, the seal absorbs oil. This way you can regrease your bearing. The Cellasto seal is of MH24-45 quality.

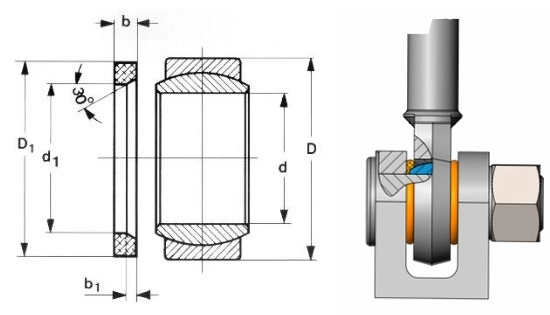

Type	Artikelnr.	Nominal Size	d	D	d 1	D 1	b	b1
CD 4	6560961	4	4	12	6,5	10	3	1,5
CD 5	6560962	5	5	14	8	12	3	1,5
CD 6	6560963	6	6	14	8	12	3	1,5
CD 8	6560964	8	8	16	10,5	14	4	2
CD 10	6560965	10	10	19	13,5	17	4	2
CD 12	6560966	12	12	22	15	20	4	2
CD 15	6560967	15	15	26	18,5	24	4	2
CD 17	6560968	17	17	30	21	28	5	2,5
CD 20	6560969	20	20	35	24,5	33	5	2,5
CD 25	6560970	25	25	42	29,5	40	5	2,5
CD 30	6560971	30	30	47	34,5	45	5	2,5
CD 35	6560972	35	35	55	40	53	6	3
CD 40	6560973	40	40	62	45	60	6,5	3,5
CD 45	6560974	45	45	68	51	65	7	3,5
CD 50	6560975	50	50	75	56	72	7,5	3,5
CD 60	6560976	60	60	90	67	87	9	4
CD 70	6560977	70	70	105	78	101	9	4
CD 80	6560978	80	80	120	89,5	116	10	5
CD 90	6560979	90	90	130	98	126	12	6
CD 100	6560980	100	100	150	110	145	16,5	8
CD 110	6560981	110	110	160	122	155	16,5	8
CD 120	6560982	120	120	180	130	173	15	7,5
CD 140	6560983	140	140	210	156	202	16	8
CD 160	6560984	160	160	230	172	222	18	9
CD 180	6560985	180	180	260	200	250	18	9
CD 200	6560986	200	200	290	215	280	25	12
CD 220	6560987	220	220	320	240	310	25	12
CD 240	6560988	240	240	340	266	328	25	12
CD 260	6560989	260	260	370	290	358	25	12
CD 280	6560990	280	280	400	314	390	25	12
CD 300	6560991	300	300	430	337	418	28	14
